Monitoring of crack widths and local climate

i4M Titelbild Brückenmonitoring

Objective

  • Monitoring of crack widths or crack movements and local climate on up to 500 m long motorway bridges in Germany
  • Increasing sustainability by extending the service life of the motorway bridge

Customer

Kempen Krause Ingenieure GmbH

Period

In operation since 2019

Challenges

  • Poor accessibility of crack locations
  • Years of battery life
  • Weather conditions
  • Long radio ranges necessary due to large distances between measurement locations

Realization

  • nemi WAMS (Wide Area Monitoring System) based on a local wireless network with up to 30 battery-powered sensor modules nemi WAMS Node and a battery-powered gateway nemi WAMS Bridge.
  • Detection of temperature, humidity and crack width in each nemi WAMS Node
  • Long battery life of 7 years (at one reading per 20 minutes) due to ultra high efficiency radio technology in the 868 MHz frequency band nemi Link 868
  • IP 67 weatherproof housing and position sensors
  • Data transmission via MQTT connection over cellular network to nemione server
  • Possibility of alarming by e-mail and SMS when limit values are exceeded

Advantages

  • Simple installation due to omission of cabling on large structures
  • Self-sufficient solution without additional mains power supply
  • Automatic customized report generation and display of live measurement data in online dashboard
  • Safe use of bridges can be extended for many years in the event of exceeding static loadings

Deployed nemione® products

  • up to 30x nemi WAMS Node
  • 1x nemi WAMS Bridge

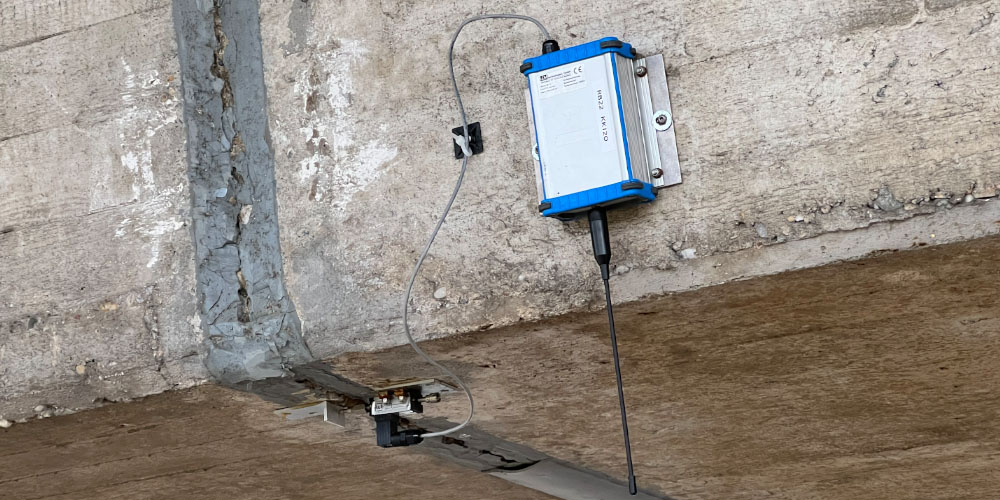

Sensor an Betonbrücke

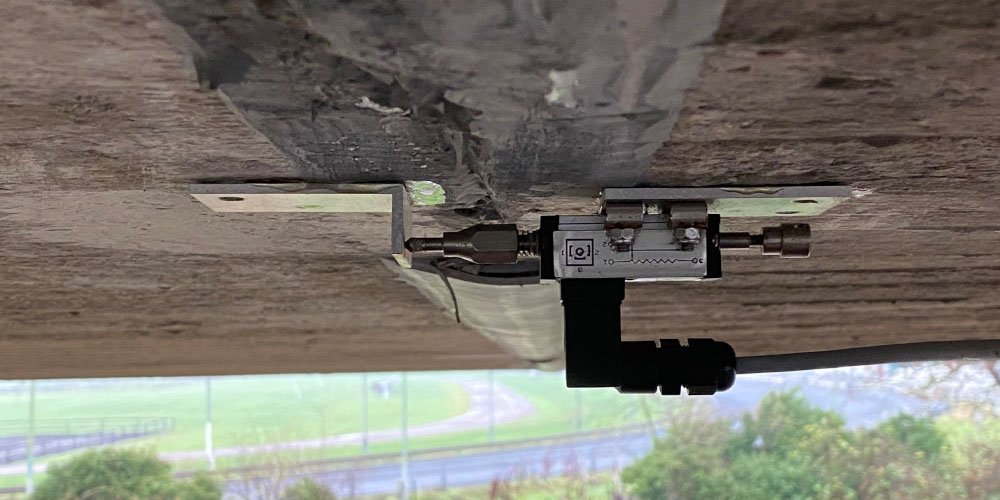

Sensor unterhalb einer Autobahnbrücke

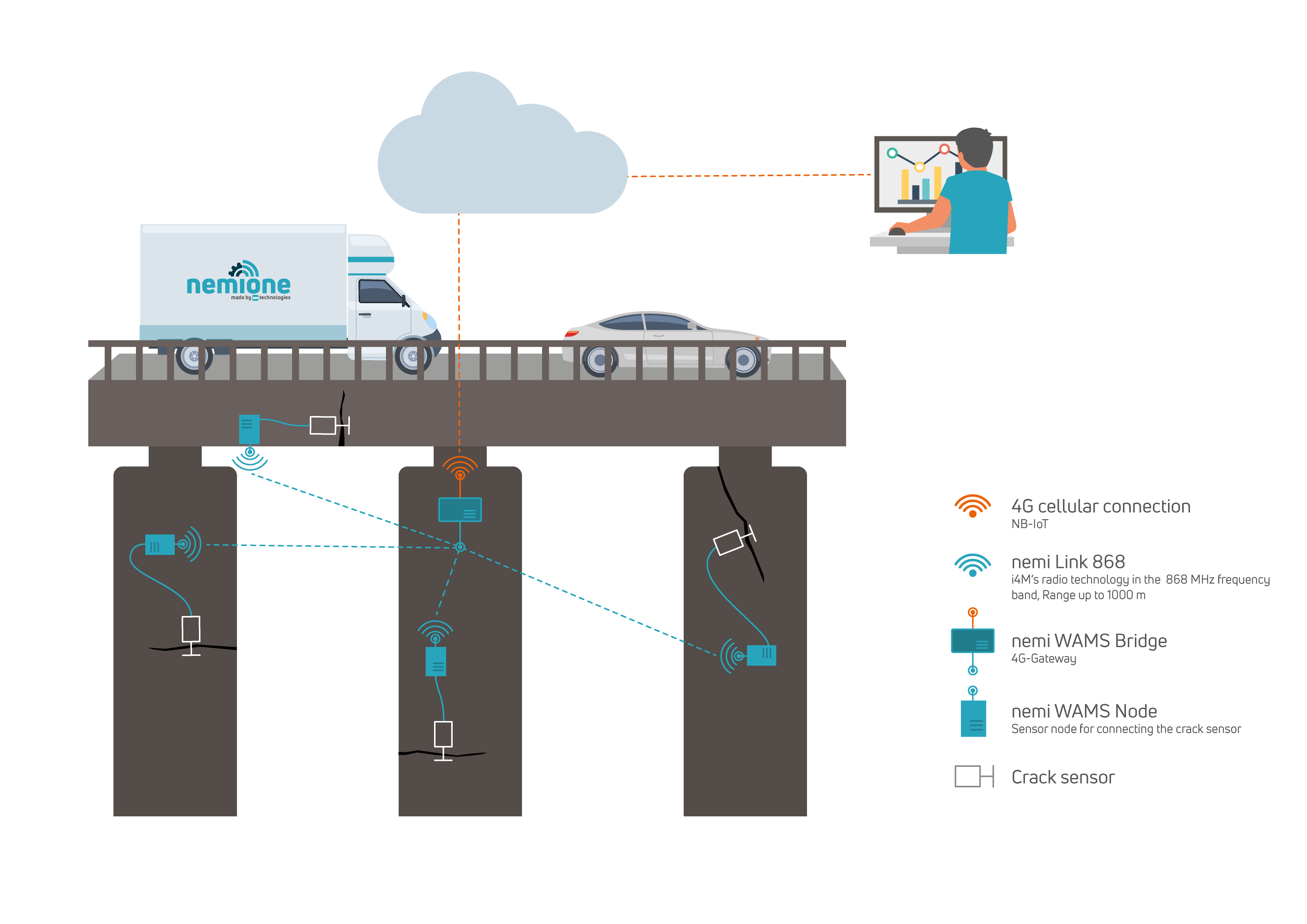

Graphic crack monitoring system
Logo Kempen Krause

„Thanks to wireless data transmission, the nemione crack monitoring system enables us to facilitate installation even in poorly accessible locations. In addition, the efficient i4M wireless technology can realize years of service life and permanent, low-maintenance monitoring of cracks on highway bridges. As a result, the bridges can continue to be used safely for years even in the event of critical or limited utilization in terms of static reserves.“

Dr.-Ing. Marc Kosalla

Project Manager Structural Diagnostics/ Concrete Maintenance Department

Kempen Krause Ingenieure GmbH
